◆Details:
------- crack / shock resistant barrel, cap, grip design
------- pen material: PEEK (Germany)
------- feed material: Ebonite (Japan)
------- converter not included
(Use Pilot Con-40 / Con-70, or eyedropper(don't recommend as carry around pen)
(I'm not a retail seller of pilot, so it isn't possible for me to get pilot converters in batch.
please purchase from local sellers)
------- grip section: 0.01mm accuracy, precision machined, solid & thick one piece design
* there may be small variation of color difference, compared to barrel & cap.
(PEEK manufacturer said PEEK changes a bit depending on the manufacturing date / process)
it could be either a bit lighter / darker color. functionality / performance is the same.
------- barrel & cap: plain round / dodecagon precision machined, solid & sturdy one piece design
------- barrel & cap will perfectly line up, with typical closing force
* may leave extra 1~2 microns, because surfaces may wear over years of use.
(a precision of ±0.001mm ( ± 1 micron) is strictly followed to achieve proper positioning)
------- nib: BOCK (Germany)
nib size "M" (same thickness as mechnical pencil 0.7mm)
may be a bit thinner than regular M, due to my additional nib grinding
Nib surface micro blasted treatment
The following has been done for the nib:
1. precise nib selection from a large batch
2. nib surface micro blasting
3. nib friction fit installation
4. precision heat setting of ebonite feeder, to perfectly match the feed to the nib
5. nib slit size adjustment
6. nib point alignment
7. nib baby bottom removal (Eliminate Skipping)
8. nib scratchiness reduction
9. nib smoothing / test
10. nib overall inspection
------- feed: eureka 5th gen V3 ebonite feeder
solid & sturdy one piece design
("The most precise and complex structured ebonite feed ever created")
details regarding the feeder: https://eurekafp.com/670, https://eurekafp.com/588, https://eurekafp.com/590
* extra $25 for additional ebonite feed(s), if needed.
* additional grip section can be purchased as well. (see "parts" category)
compatible ebonite feeds for various nibs:
1) Bock 250 / Jowo #6 steel / titanium / 14K /18K --- $25
2) Duofold Centennial 18K --- $25
3) Pilot 742 14K --- $30
4) Pilot 743 14K --- $30
5) Aurora 14K / 18K --- $25
6) Platinum #3776 14K --- $25 / 3 types (regular fit, loose fit, more loose fit)
7) Omas (#6) 14K / 18K --- $25
8) Pelikan M800 18K --- $25
9) Sailor 21K (Progear) --- $25
10) MontBlanc 146 --- $25
11) Duofold International 18K --- $30
*** if needed you can purchase the assembled set.
there's no nib installation fee($20), if bought as a set.
Set = Nib (bock) + ebonite feed + grip section
--------------------------------------------------------------------------------
<<<Important Information >>>
◆How to Receive Notification For Newly Made Pens: https://eurekafp.com/notice/432
◆ (TIPs) Easy Roll Stoppers Four Your Eureka Pens: https://eurekafp.tistory.com/560
◆ What is micro blasted nib?: https://eurekafp.tistory.com/591, https://eurekafp.com/731
◆ Oring added to grip section for Con-70: https://eurekafp.tistory.com/712
◆ How to use Con-70 properly for Eureka pens: https://eurekafp.com/689
◆ How to install Con-70 & important quirks: https://eurekafp.com/641 , https://eurekafp.com/681
◆ PEEK Durability Test: https://eurekafp.com/676
◆ What is PEEK material?: https://eurekafp.com/717
---------------------------------------------------------------------------------
◆ Dodecagon Cigar Symmetry PEEK + ebonite feed (5g v3) + blasted plain nib
--- $154 (Paypal)
--- $145 (Wise)
◆ Shipping: $25 (EMS Express, 7 days, full coverage insurance)

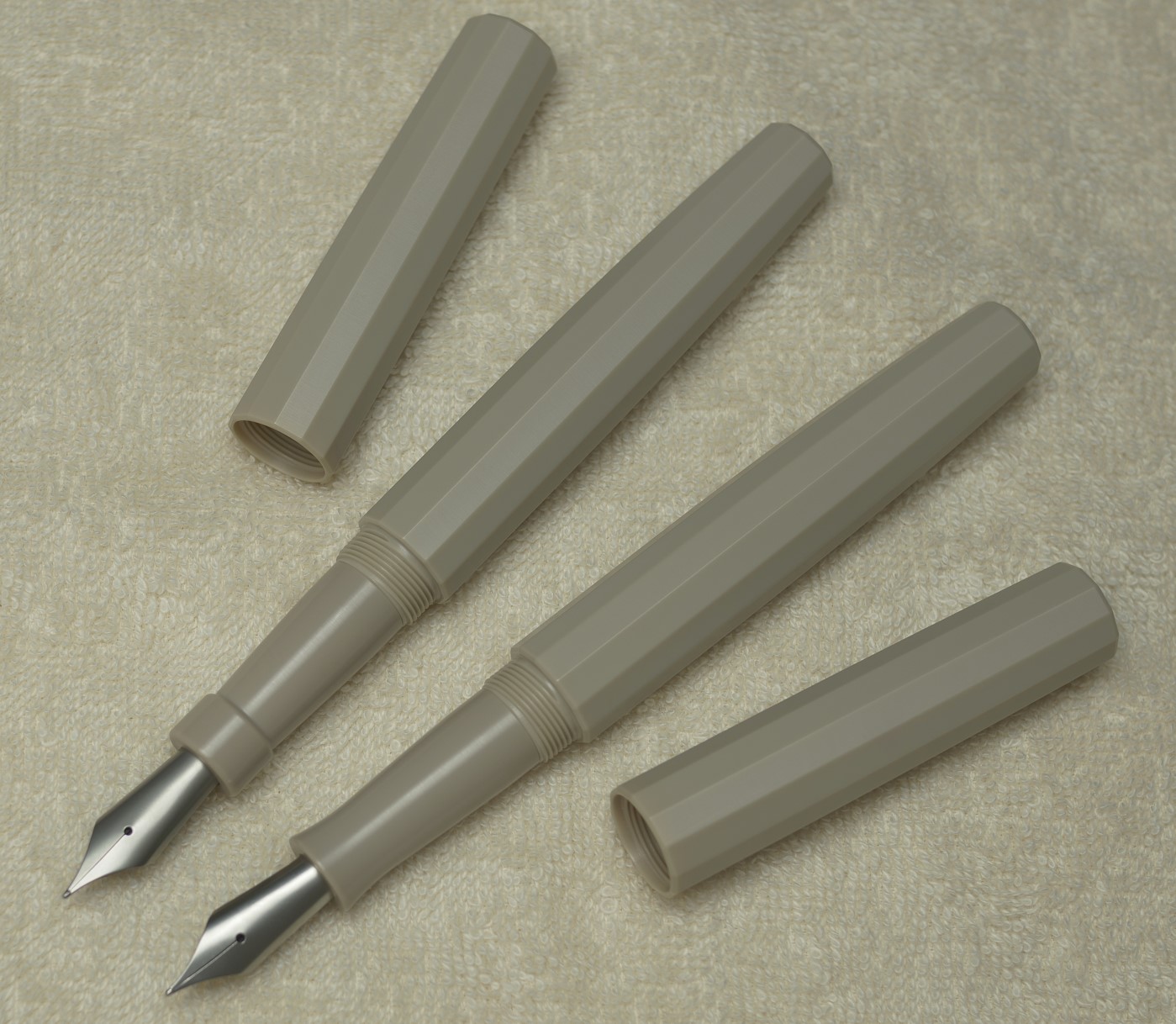

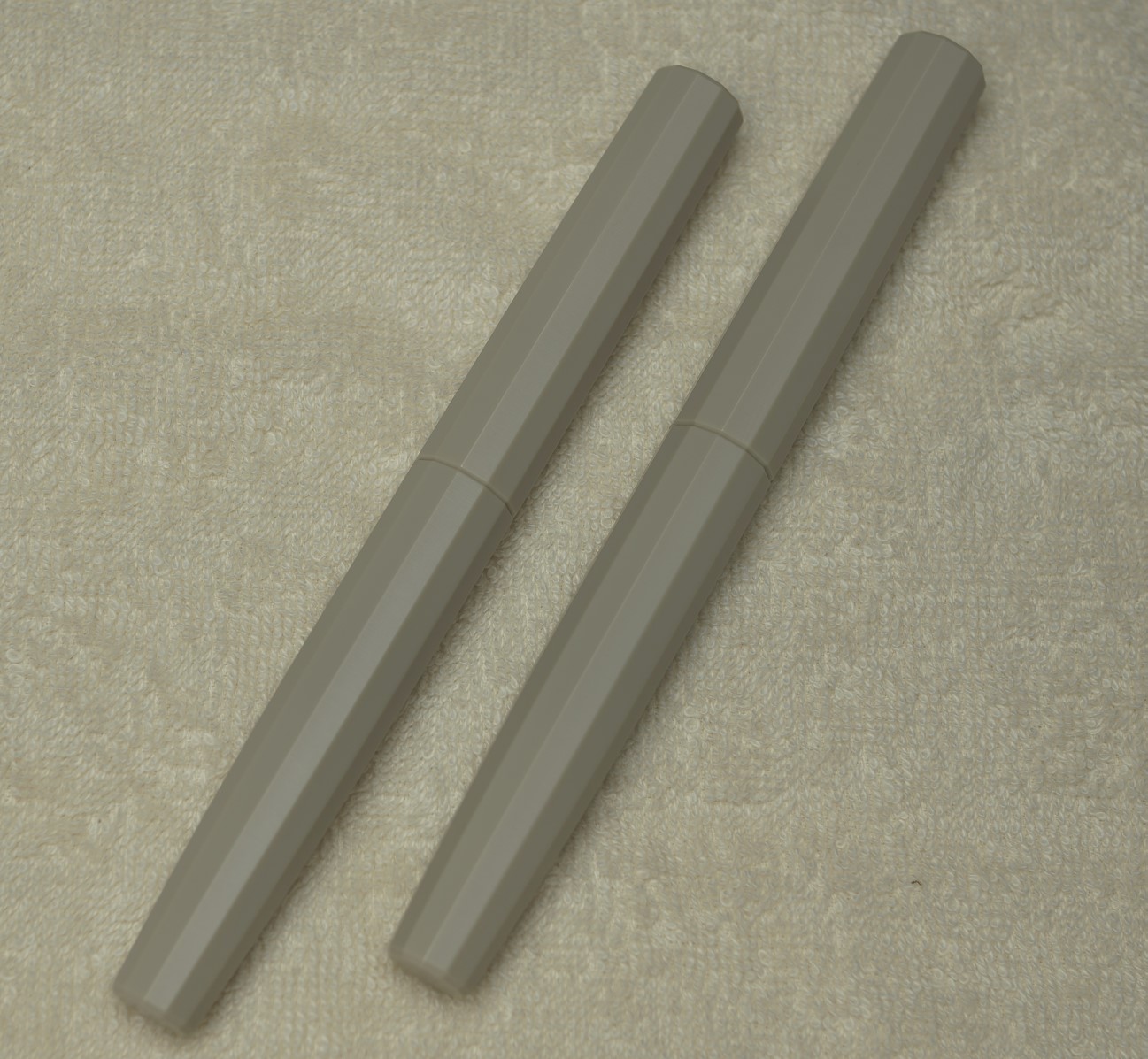

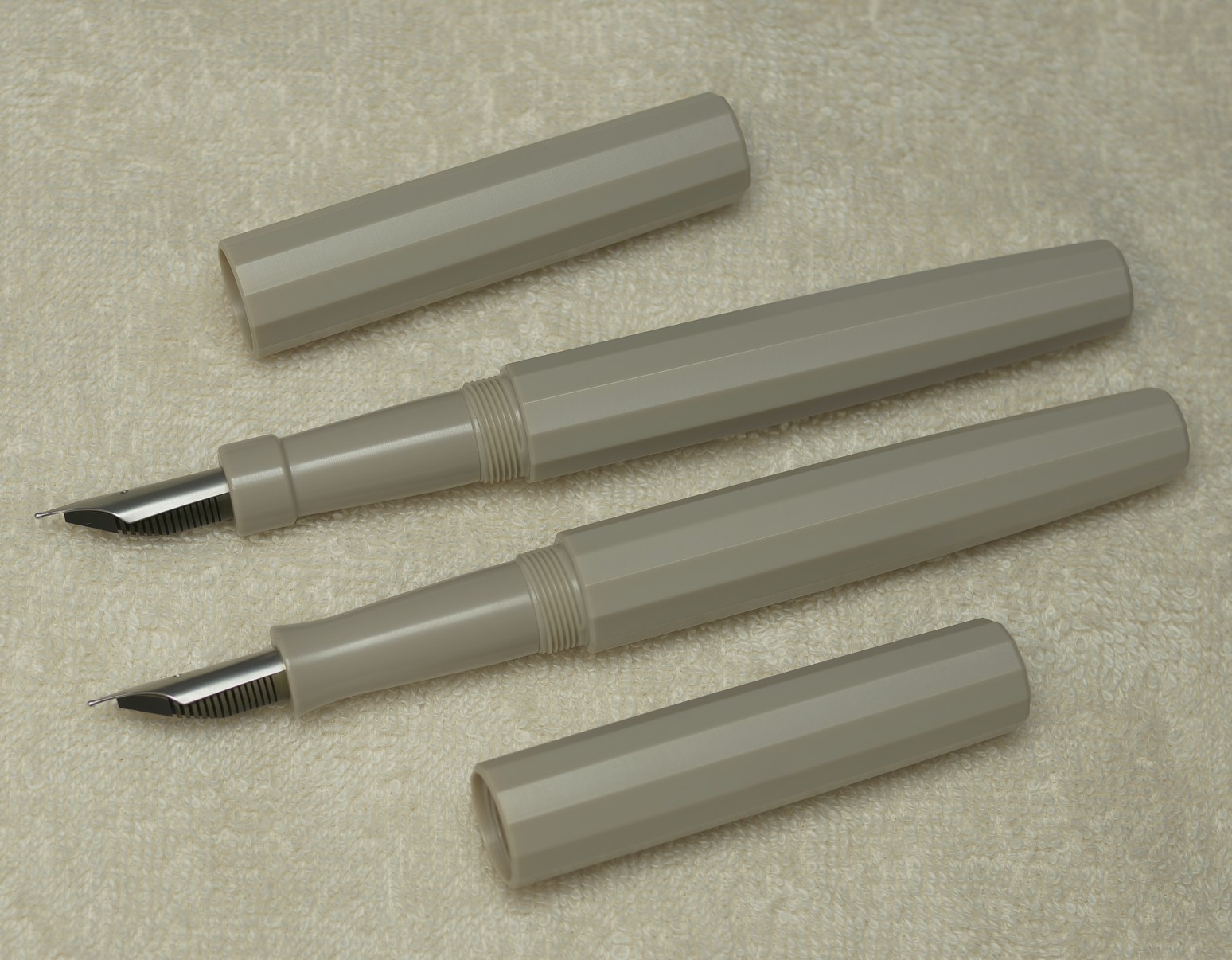

*pen in the below photo will be sent

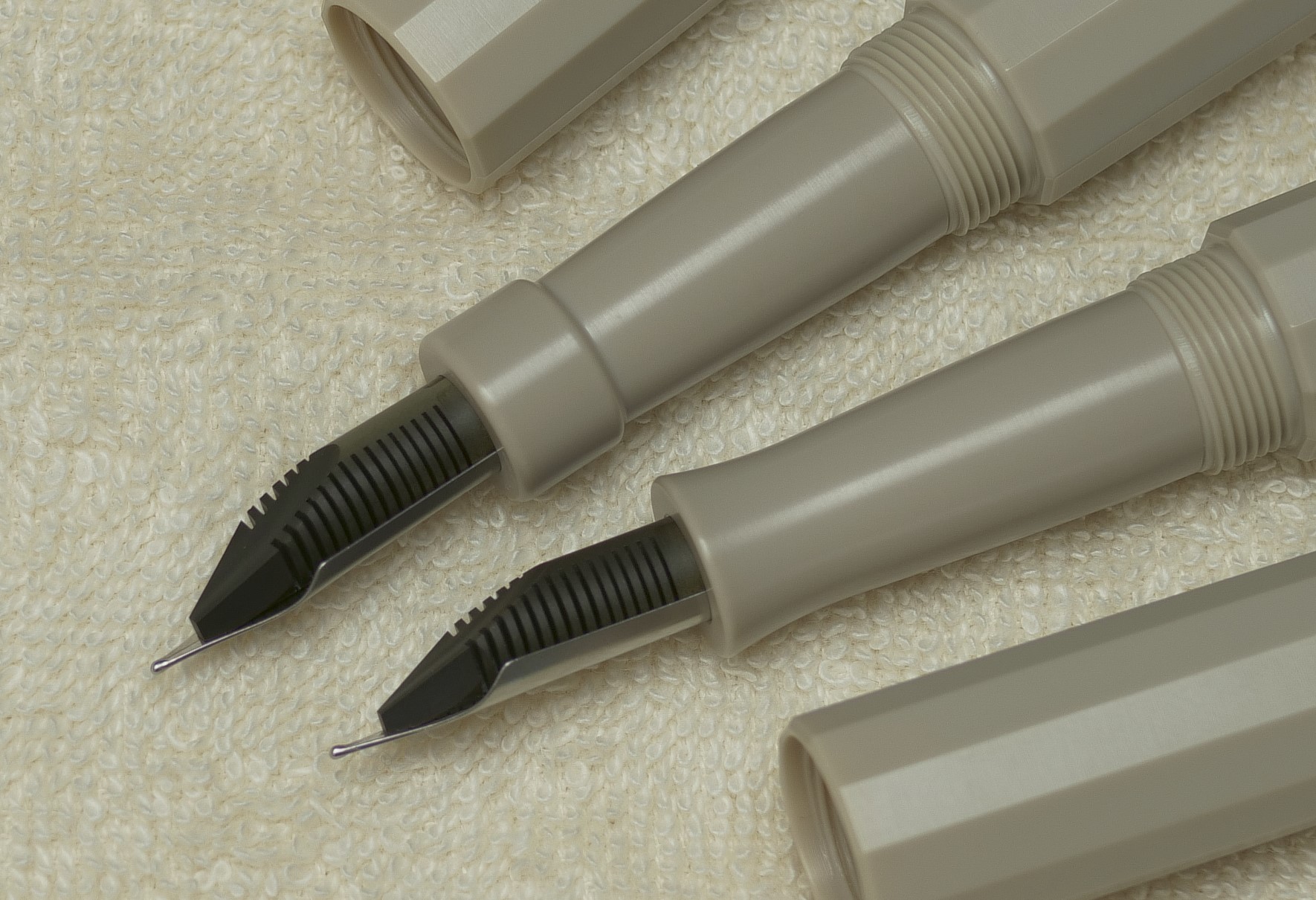

Left: Vintage thick arc grip
Right: hourglass arc grip
